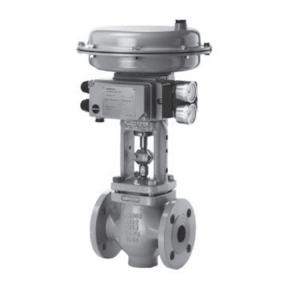

    Samson Control Valve 3766 3767 Positioner 3241/3375 Electric Control Valve

    Ask Lasest Price
    Brand Name : SAMSON
    Model Number : 3767
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50
    Delivery Time : 4-10 weeks
    • Product Details
    • Company Profile

    Samson Control Valve 3766 3767 Positioner 3241/3375 Electric Control Valve

    Products Description

    samson control valve with positioner 3766,3767 valve positioner with 32413375 Electric Control Valve
    The positioners ensure a predetermined assignment of the valve position (controlled variable x) to the input signal (referencevariable w).
    They compare the input signal received from a control system to the travel of the control valve and issue a
    corresponding output signal pressure pst (output variable y). A reversing amplifier for double-acting actuators produces two opposed signal pressures. Special features Any mounting position possible, suitable for normal or splitrange operation, excellent dynamic response, negligibly small influence of supply air, adjustable proportional band (P band), adjustable air output capacity, low air supply consumption, very insensitive to mechanical vibrations, lowmaintenance compact design. • Versions for use in hazardous areas in type of protection intrinsic safety II 2G Ex ia IIC T6 or II 3G Ex nA II T6 for Zone 2. • Type of protection "Flameproof enclosure" Ex d with Type 3766 Positioner and Type 6116 i/p Converter (Fig. 2) • Direct attachment to Type 3277 Actuator (Fig. 3) • Attachment to actuators according to IEC 60534-6. • Attachment to rotary actuators according to VDI/ VDE 3845
    Details Images
    Samson Control Valve 3766 3767 Positioner 3241/3375 Electric Control Valve
    Product Paramenters
    Samson Control Valve 3766 3767 Positioner 3241/3375 Electric Control Valve
    Name
    samson control valve with positioner 3766,3767 valve positioner with 32413375 Electric Control Valve
    Brand
    Samson
    Model
    3677/3676
    working range
    -10 to +114 %
    Voltage
    24VDC
    Application
    Gas& Oil industry
    Connection
    SOLENOID
    size
    1/4 NPT
