| Brand Name : | Krohne |
| Model Number : | OPTIFLUX 2300 |
| Price : | US $1500.00 - 2000.00/ Unit |
| Payment Terms : | T/T |
| Supply Ability : | 1000 units per year |
| Delivery Time : | 60 days |

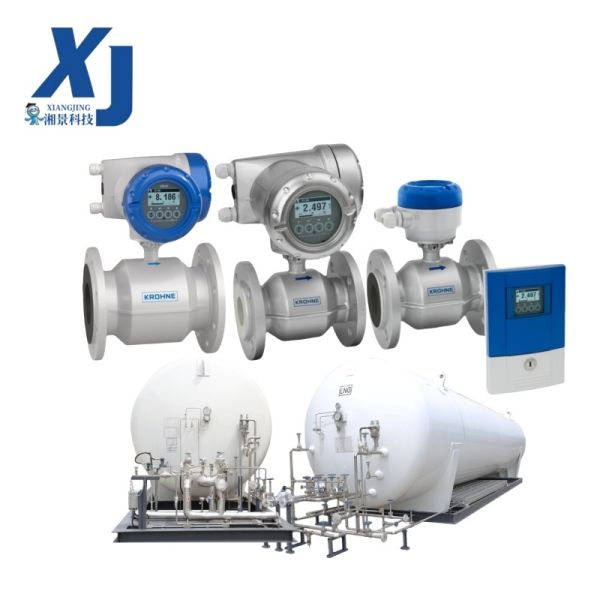

The Krohne OPTIFLUX 2300 is a robust electromagnetic flowmeter optimized for water and wastewater applications. With a hard rubber or polyurethane liner, it delivers ±0.2% accuracy across a 1:1000 turndown ratio. The innovative virtual reference eliminates the need for grounding rings, reducing installation costs. Certified for drinking water (NSF/ANSI 61, WRAS, ACS), it features a full-bore design with no moving parts. The IFC 300 converter offers HART, Modbus, and FOUNDATION Fieldbus communication, plus diagnostic functions for conductivity and electrode health. Ideal for municipal water distribution, sewage treatment, and industrial effluent monitoring.
| Parameter | Specification |
|---|---|
| Measuring Principle | Electromagnetic |
| Size Range | DN 25 to DN 3000 |
| Accuracy | ±0.2% o.r. ± 1 mm/s |
| Turndown | 1:1000 |
| Process Temperature | -5°C to +90°C (rubber), +120°C (PU) |
| Pressure Rating | PN 10 to PN 40 |
| Liner | Hard rubber, Polyurethane |
| Outputs | 4-20 mA HART, Modbus, FF |
| Protection | IP67/68 |
| Certifications | NSF/ANSI 61, WRAS, OIML R49 |
No, virtual reference eliminates them.
Yes, NSF, WRAS, ACS certified.
Up to DN 3000 (120 inches).
Yes, IP68 rated for 10 m depth.
Yes, bi-directional with net totalizer.
